GGU-GABION: Step 1 - Select analysis options (Ex. 1)

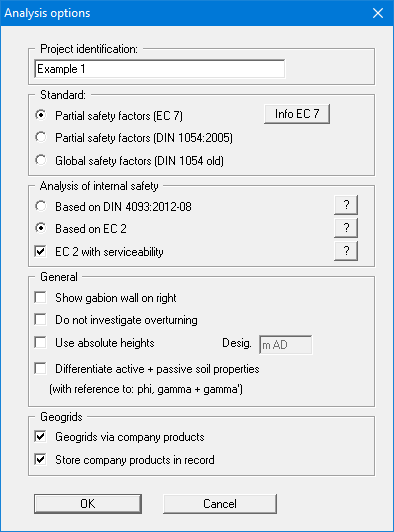

After starting the program, the logo is displayed. Select the menu item "File/New". The following dialog box will appear:

For this example, use the settings shown in the dialog box above and click "OK". First, another dialog box opens:

If you click "Yes", you can immediately generate the body's geometry (see “Example 1: Step 4 - Define body geometry”). However, for this example, click on "No" first.

A new system is then displayed on the screen and the complete menu bar is shown.
