GGU-STABILITY: "Point loads" button

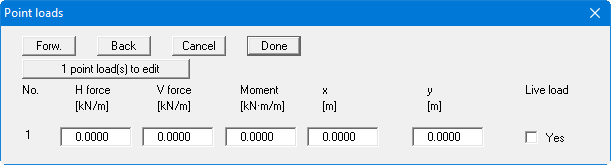

Using this button, you can enter any point loads. For input alter the number of point loads in accordance with the previous descriptions.

Then, the size of the point load (horizontal force, vertical force and moment) and the coordinates of the point of acting must be entered. The horizontal components of point loads and the moments will naturally only be considered if the point of acting lies within the slip body. The vertical component is handled corresponding to the permanent or changeable distributed loads.
