GGU-STABILITY: "Steel strips" button

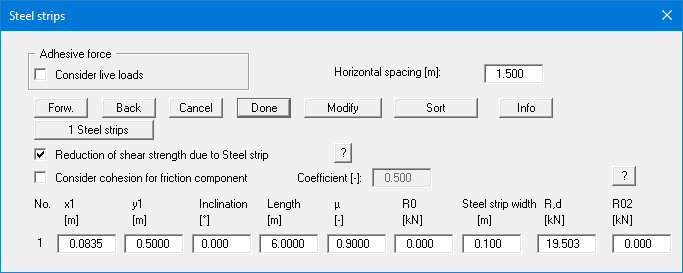

If you have activated the "Use steel strips" check box in the "Editor 1/Analysis options" menu item, the "Steel strips" button appears instead of the button for entering geosynthetics. You will see a dialog box that is almost identical to the dialog box for geosynthetics:


In addition, enter the horizontal distance and the steel width.
